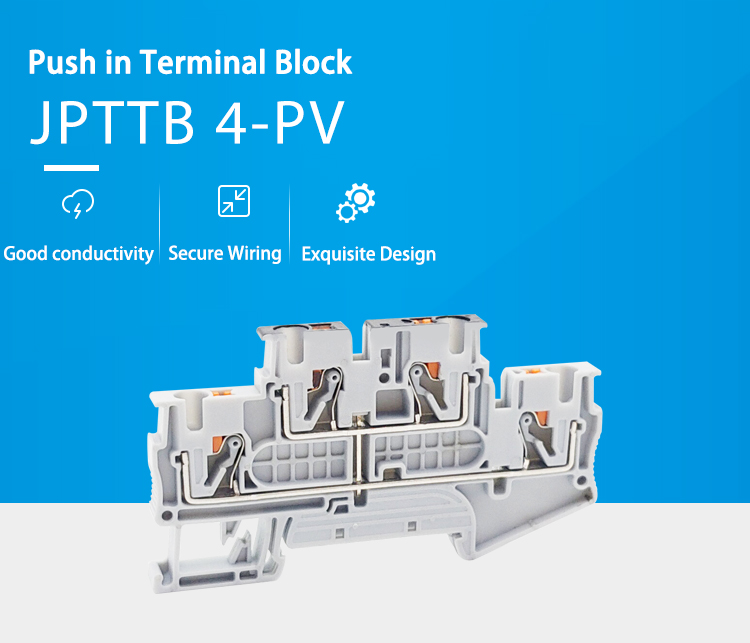

JPTTB 4 - PV Din Rail Feed Through Terminal Block 2 Level With Equipotential Bonder

Product Categories

Wonke Electric CO.,Ltd.

Contact Now

Name: JPTTB 4 PV Din Rail Feed Through Terminal Block 2 Level With Equipotential Bonder
Brand: WKDQ
Price: 1 USD

Brand Name : WKDQ

Model Number : JPTTB 4-PV

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : box

Model No. : JPTTB 4-PV

Color : Grey,Blue, other color can be customized

Connection method : Push-in connection

Country of origin : China, Zhejinag

Standard : IEC 60947-7-1

Material : V0-Flame resistant Nylon or PA66

Contact Now

1. DESCRIPTION:

With Push in connection technology has been tested and approved by CE, Rohs, CQC.

Tool-Free, Time and Double Level space saving design of the push in erminal block and the direct push-in connection enable easy.

Convenient insertion, thanks to 50% lower insertion force.

Safe wiring and operation, thanks to the color-coded push button.

The push button permits easy conductor release using any type of tool, without direct contact with live parts.

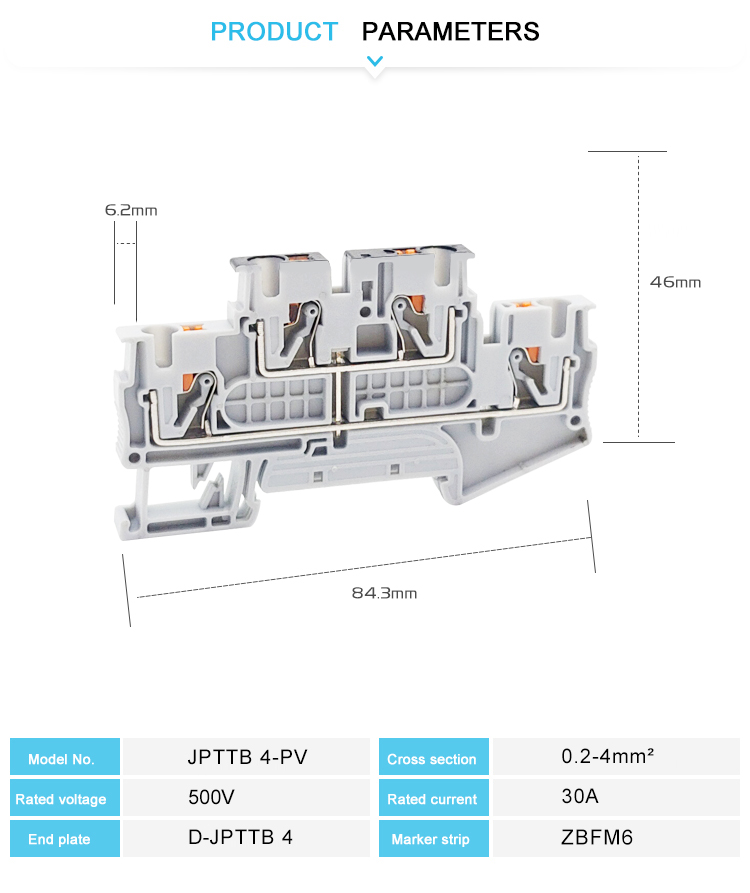

Technical Parameters

Model No.	JPTTB 4-PV
Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	84.3/ 46 /6.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/30A
Cross section, solid/soft Cable	0.2-6 mm²/0.2-4 mm²
Conductor Size	24-11AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ LOGO can be customized
Packing Detail	50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

JPTTB 4 - PV Din Rail Feed Through Terminal Block 2 Level With Equipotential Bonder

Product Tags:

Feed Through Din Rail Terminal Block
